Adjustable camber / caster plates (front) Volkswagen DERBY (86)
Part number:
MTSCP43SET
Car
MakeVolkswagenModelDERBY (86)Type86Engine0.9 / 1.1 / 1.3Year02/77 - 09/81
Tech specs
AxlefrontVersionAdjustable camber / caster plateAdjustment range-2.0° to OEMAdditional lowering-Weight770 gFitting for OEM suspensionnoTUV CertificatenoDownload GPSR brochureDownload GPSR brochureDownload GPSR stickerDownload GPSR stickerDownload installation manualDownload installation manual
Product notes
59 - If the kit does not include a special piston rod nut, use a nut from the shock absorber.63 - The adjustment range may be different depending on the vehicle version, the lowering or the accuracy of welding of the suspension components.
Product description

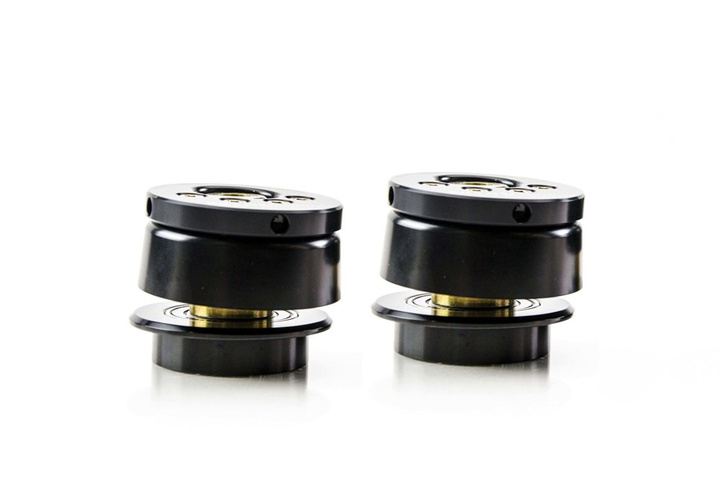

Adjustable camber / caster plates (front) Volkswagen DERBY (86)
Adjustable camber / caster plates (front) MTS Technik for Volkswagen DERBY (86) allows you to adjust the angle of inclination of the wheels relative to the ground and the lead angle of the kingpin.
Evolution 2 - the latest generation of MTS Technik top mounts.
When designing the new, improved upper mounts, we were inspired by the slogan 'Daily stance - basic motorsport'. We wanted the product to have sports features (increased stiffness, new uniball bearing, angle adjustment) while minimizing the nuisance in everyday use and high aesthetics required by showcar event cars (aesthetic black-gold).
Compatibility
Compatible with the following MTS Technik coilover suspensions:
MTSGWVW14
If you want to use Adjustable camber / caster plates (front) in a coilover suspension of another brand, check the dimensions below:
A - Piston rod diameter: 22 mm
B - Piston rod thread pitch: M12x1.5
C - Length of the groove: 40 mm
D - Piston rod thread length: 40 mm
