Coilover Kit Street Volkswagen PASSAT B7 Variant (365)
Coilover Kit Street Volkswagen PASSAT B7 Variant (365)
Coilover Kit Street Volkswagen PASSAT B7 Variant (365)
Coilover Kit Street Volkswagen PASSAT B7 Variant (365)
Coilover Kit Street Volkswagen PASSAT B7 Variant (365)
Coilover Kit Street Volkswagen PASSAT B7 Variant (365)
Coilover Kit Street Volkswagen PASSAT B7 Variant (365)
Coilover Kit Street Volkswagen PASSAT B7 Variant (365)

Coilover Kit Street Volkswagen PASSAT B7 Variant (365)

Part number: XMTSGWVW45

Size
universal
869,00 €Lowest price in 30 days before discount(Discount 10% when buying in a set)
782,10 €
incl. VAT / set
-
+
of
Hurry! – only few left in stock.
Hurry! – only few left in stock.
40 days returns
Direct from the producer
2 years warranty
Secure payments
Fast shipping

Car

MakeVolkswagenModelPASSAT B7 Variant (365)Type365Engine2.0 TDI 4motion / 3.6 FSI 4motionYear08/10 - 12/15

Tech specs

SeriesStreetHousinginoxMax. Axle Load FA

rating plate

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

1100 - 1180 kgMax. Axle Load RA

rating plate

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

-1230 kgLowering FA35 - 70 mmLowering RA35 - 60 mmCamber / top mount FAnoCamber / top mount RAnoCoilover Main Spring (Front)Spring rate (34 - 40 - 70 N/mm)Coilover Main Spring (Rear)Spring rate (54 N/mm)TUV Certificateyes

Product notes

3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).7 - If the vehicle is equipped with the AMR System (Audi Magnetic Ride) - the system has to be deactivated. Suitable drivers are available only on request!21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.25 - In some cases it might be necessary to dismount the rear adjustment to achieve the maximum lowering.35 - Rear thread adjustment block is mounted on the top.73 - For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.

Product description

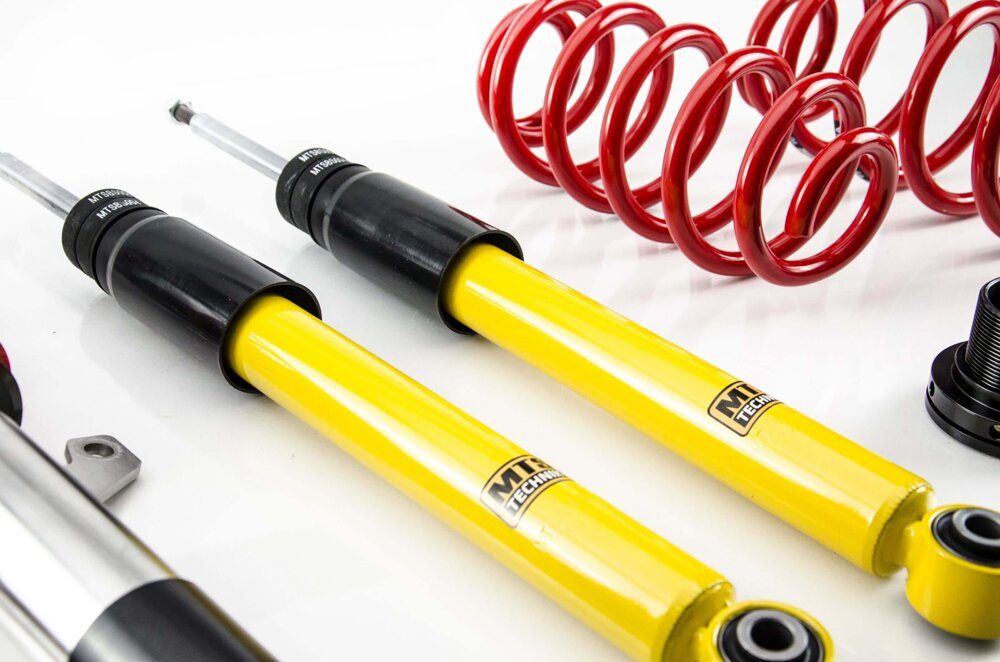

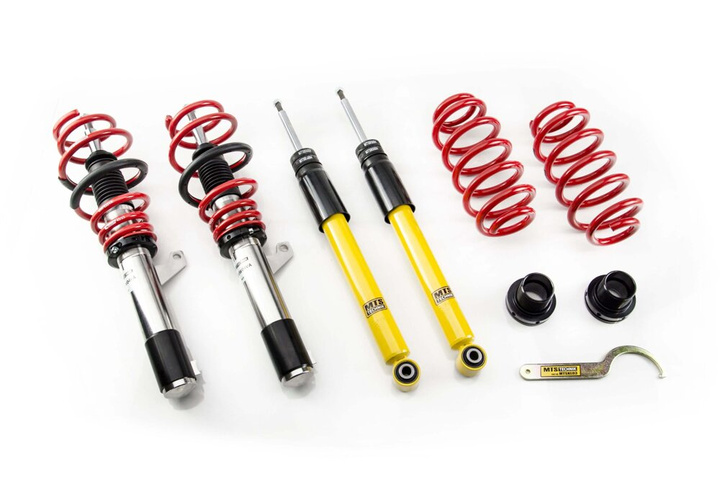

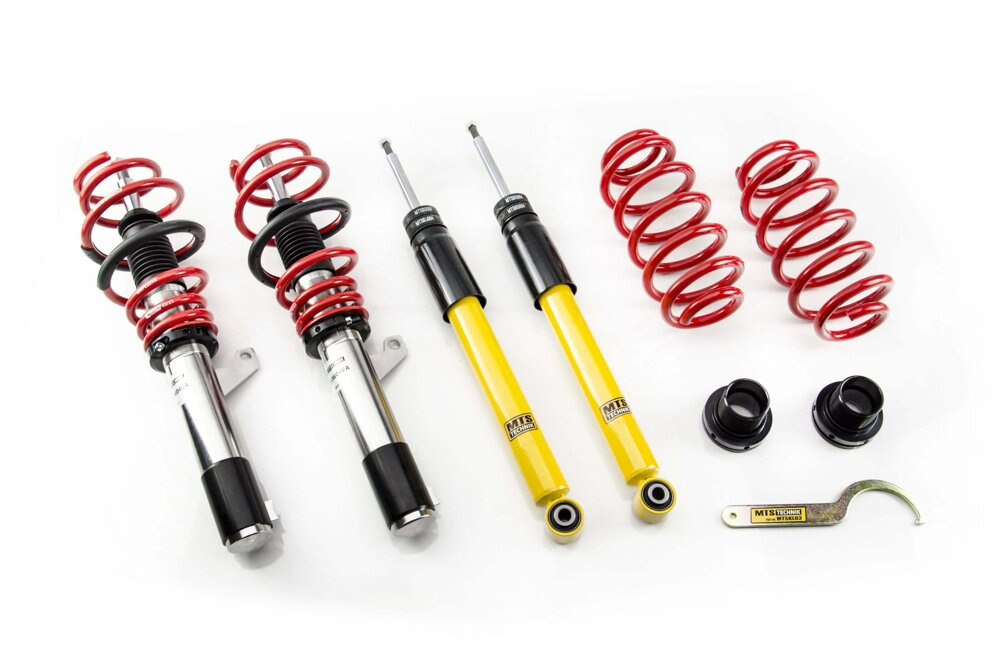

Coilover Kit Volkswagen PASSAT B7 Variant (365)

Coilover Kit MTS Technik for Volkswagen PASSAT B7 Variant (365), lowering the front axle between 35 - 70 mm, and rear between 35 - 60 mm. Dedicated for the years of: 08/10 - 12/15, for the engine version: 2.0 TDI 4motion / 3.6 FSI 4motion.

2 years warranty 2 year warranty with no mileage limit to confirm high quality.
High quality Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
Twin-tube construction The use of twin-tube technology guarantees stable shock absorber performance.
Gas technology Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.

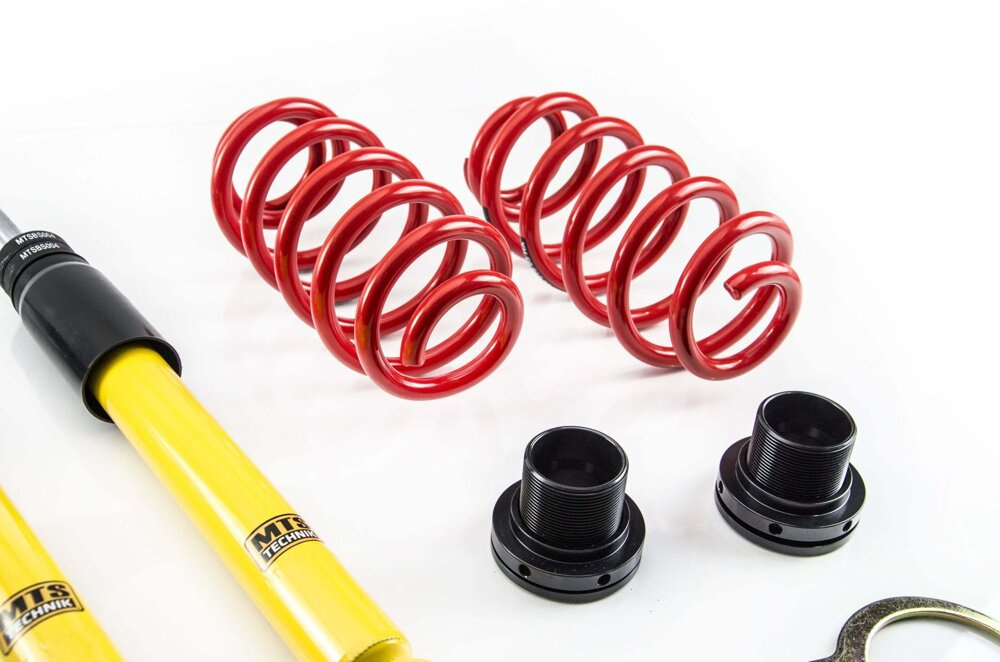

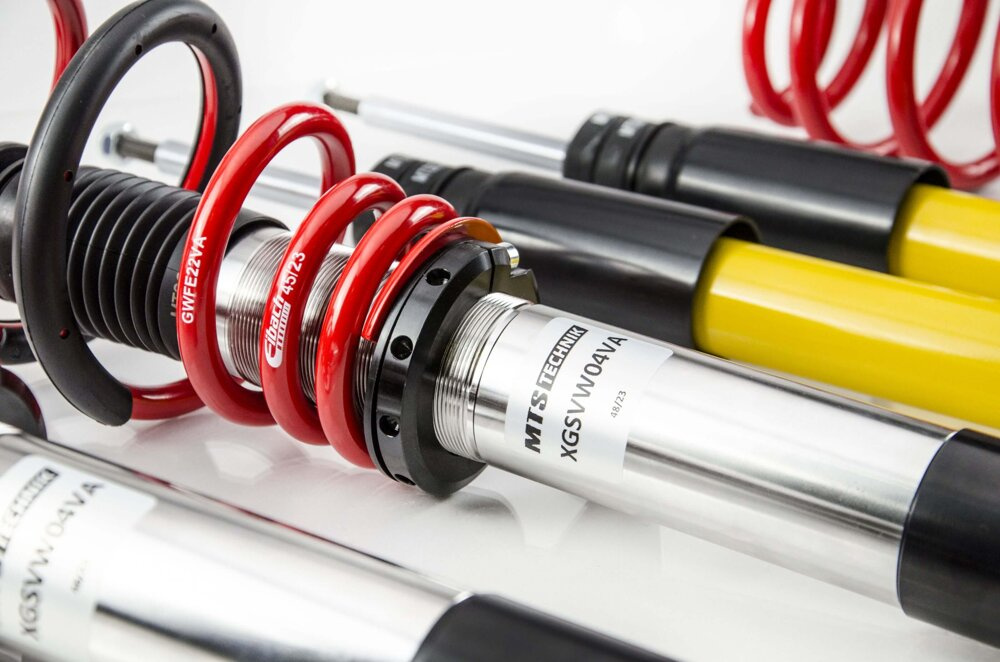

hexaCOIL adjustable spring perch Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Eibach springs Coilover springs made by Eibach, the world leader in the sport springs industry.
Stainless steel threaded shock absorbers. Stainless steel threaded shock absorbers.
