Coilover Kit Street Volkswagen CADDY IV MPV (SAB/SAJ)
Car
Tech specs
Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.
Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.
Product notes
Only for vehicles equipped with a one-piece leaf spring on the rear axle. If the vehicle is equipped with a two-part leaf spring on the rear axle a one-piece leaf spring has to be purchased seperately (while used in a Caddy - use VW part no. for leaf spring spring 2K0 511 151 N, while used in a Caddy Maxi use VW part no. for leaf spring spring 2K3 511 151 E).
21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.44 - Installation of the rear axle adjustment must be carried out in accordance with the instruction.45 - Front and rear axle height adjustable (threaded shock absorber housing on the front, provided adjustment plates + shock absorbers on the rear axle).116 - Cars with two-leaf spring on the rear axle should be swapped to on-leaf spring. VW Caddy 3 (-05/2015): 2K5 511 151 N, VW Caddy 4 (05/2015-): 2K5 511 151 AA, VW Caddy MAXI: 2K3 511 151 E.Product description

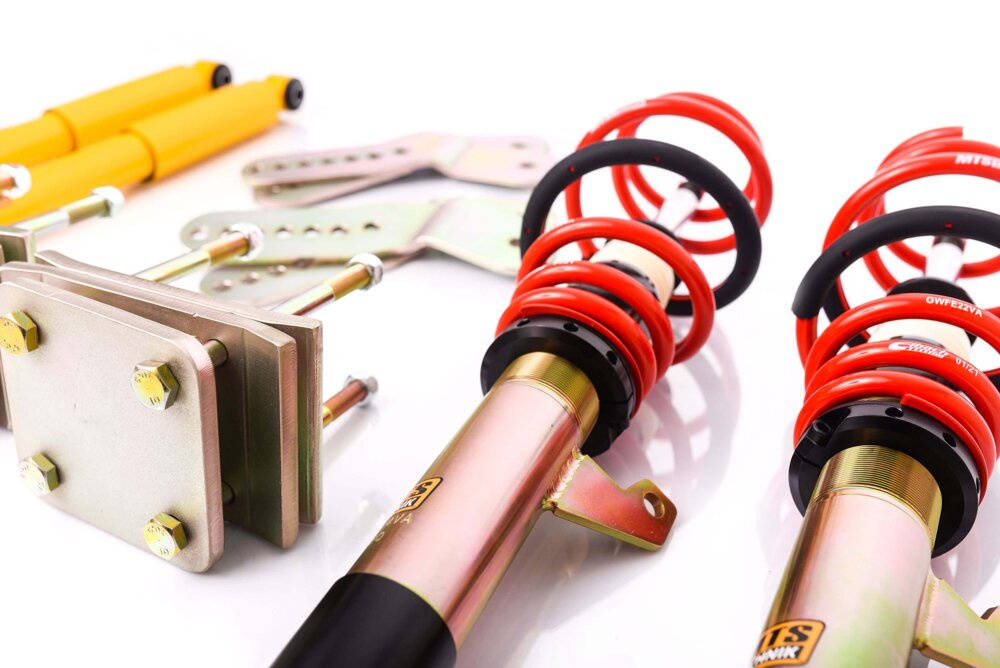

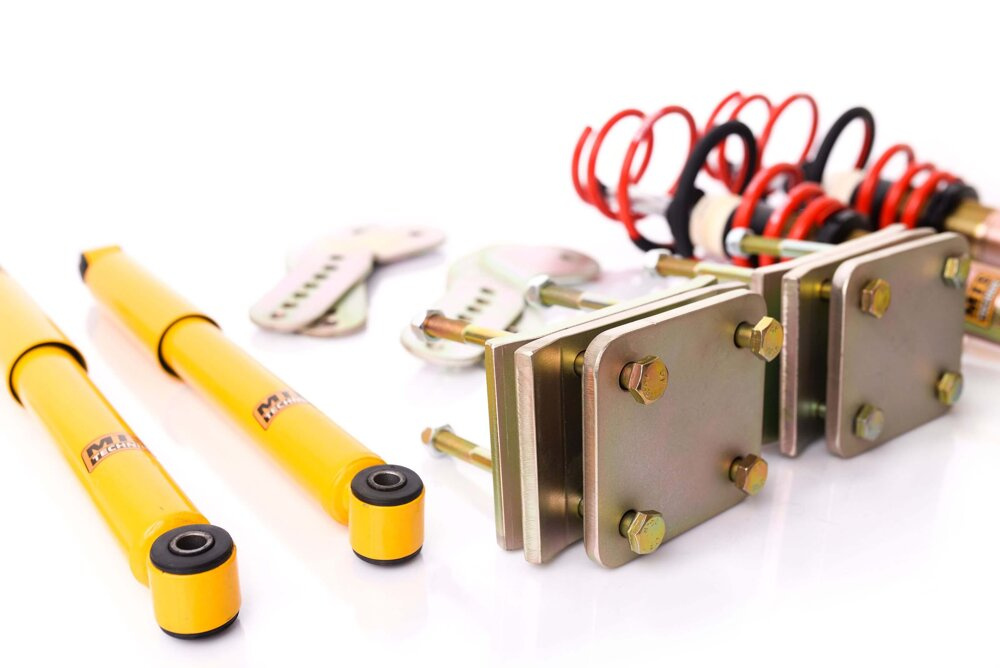

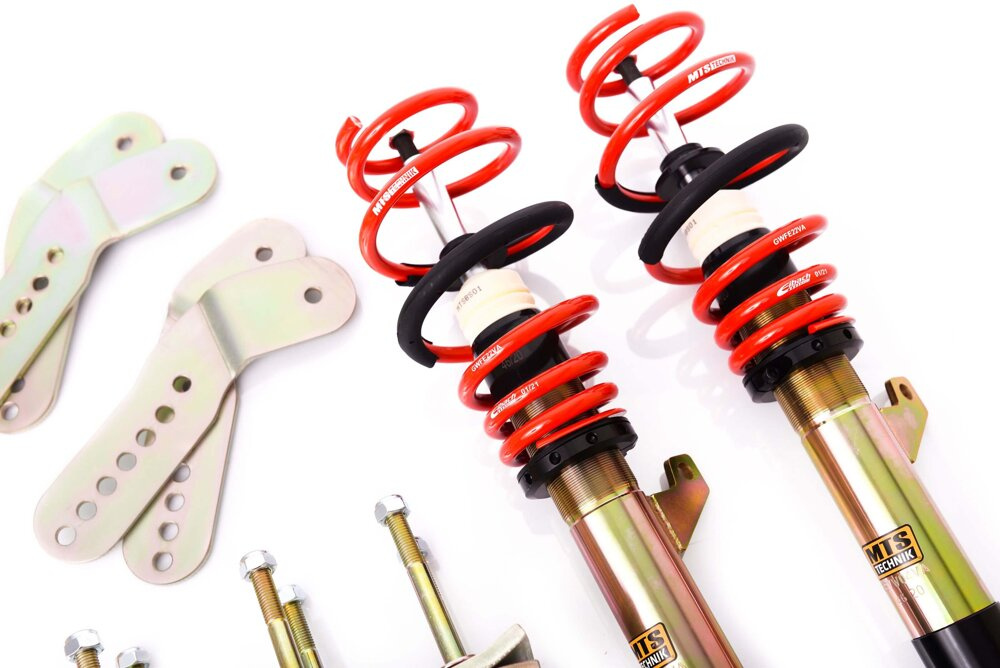

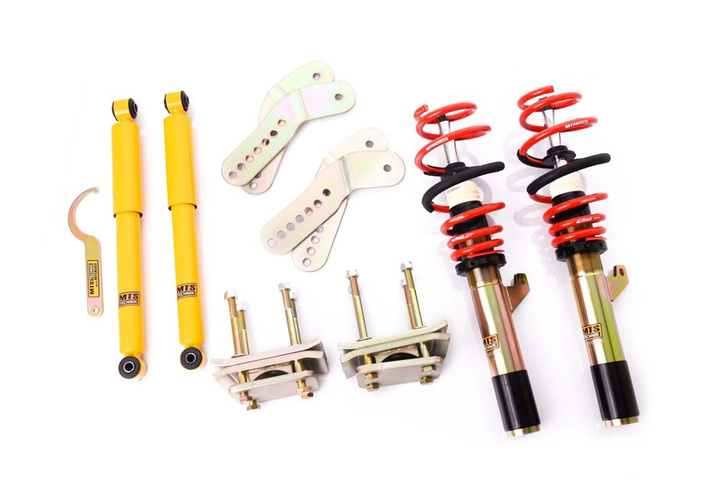

Coilover Kit Volkswagen CADDY IV MPV (SAB/SAJ)
Coilover Kit MTS Technik for Volkswagen CADDY IV MPV (SAB/SAJ), lowering both axles between 35 - 90 mm. Dedicated for the years of: 05/15 - 09/20, for the engine version: 1.0 TSI / 1.2 TSI / 1.4 TSI / 1.6 / 1.6 TDI / 2.0 TDI.
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Coilover springs made by Eibach, the world leader in the sport springs industry.
