Coilover Kit Street Mercedes-Benz CLA Shooting Brake (X117)

Coilover Kit Street Mercedes-Benz CLA Shooting Brake (X117)

Part number: MTSGWMB31

Size
universal
899,00 €Lowest price in 30 days before discount(Discount 10% when buying in a set)
809,10 €
incl. VAT / set
-
+
of
Hurry! – only few left in stock.
Hurry! – only few left in stock.
40 days returns
Direct from the producer
2 years warranty
Secure payments
Fast shipping

Car

MakeMercedes-BenzModelCLA Shooting Brake (X117)TypeX117EngineAMG CLA 45 4-matic (117.952) / CLA 45 AMG 4-matic (117.952)Year01/15 - 03/19

Tech specs

SeriesStreetHousinggoldMax. Axle Load FA

rating plate

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

-1115 kgMax. Axle Load RA

rating plate

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

-1010 kgLowering FA20 - 50 mmLowering RA20 - 55 mmCamber / top mount FAyesCamber / top mount RAnoTUV CertificateyesDownload TUV CertificateDownload TUV Certificate

Product notes

3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.28 - Set includes 2x upper "camber plates" on the front axle.39 -

Installation is also possible for vehicles with electronic damping force adjustment. The electronic system must be deactivated in this case.

73 - For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.

Product description

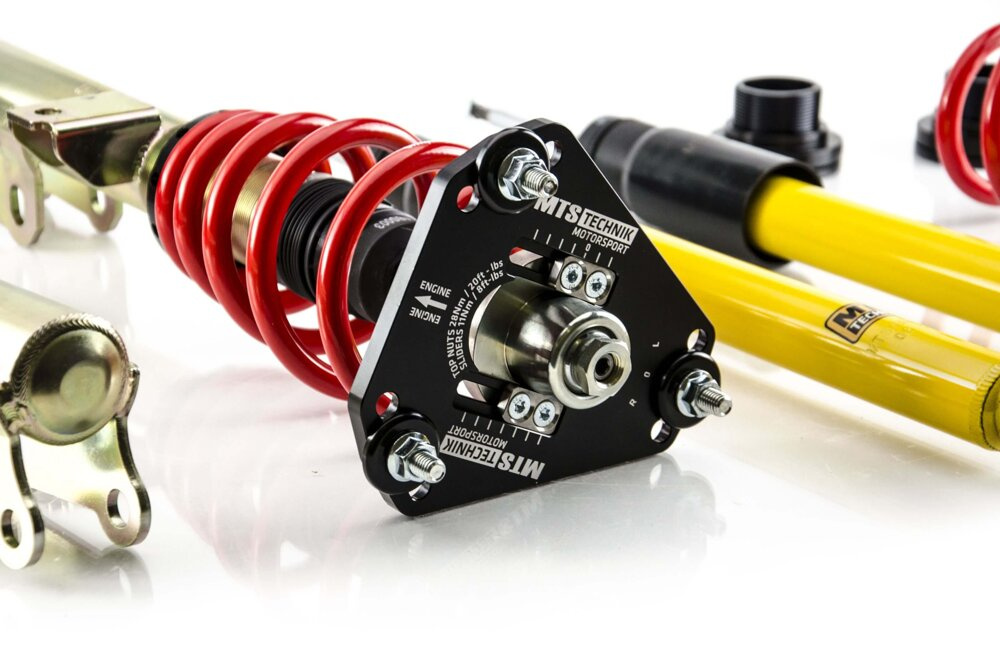

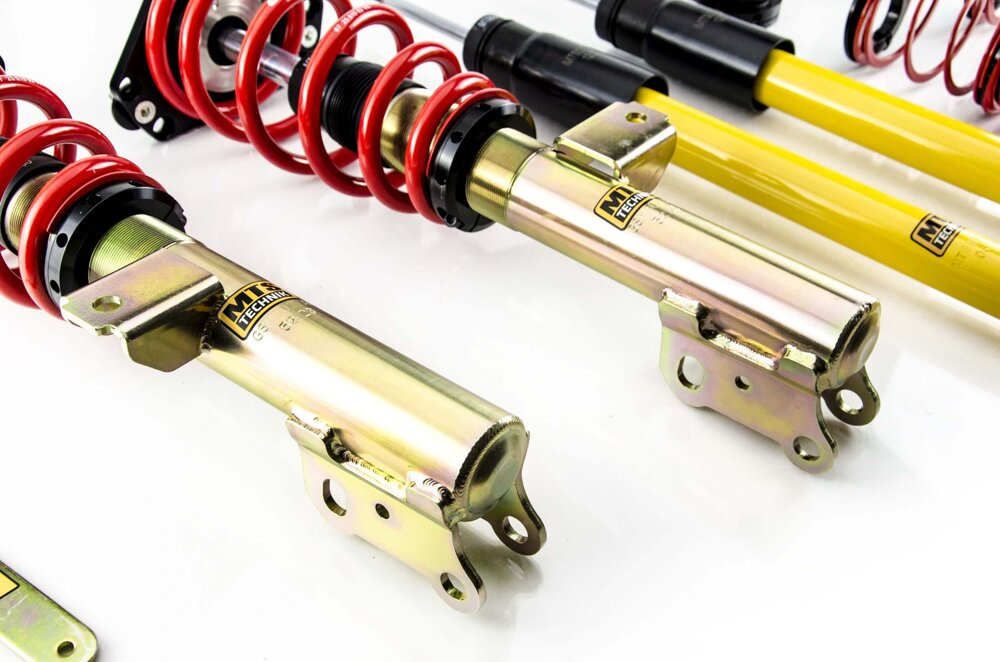

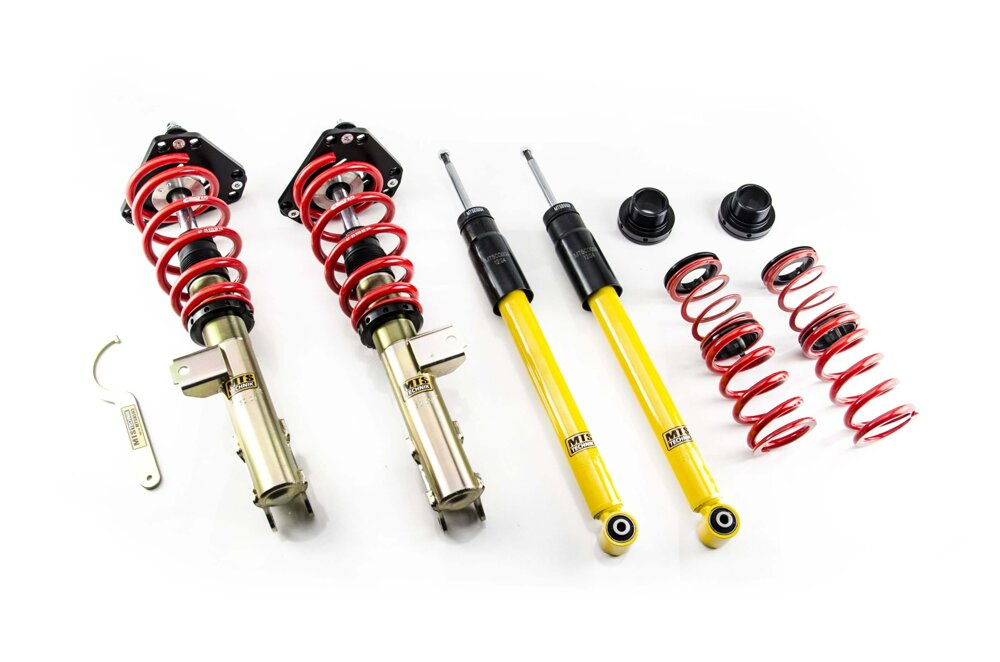

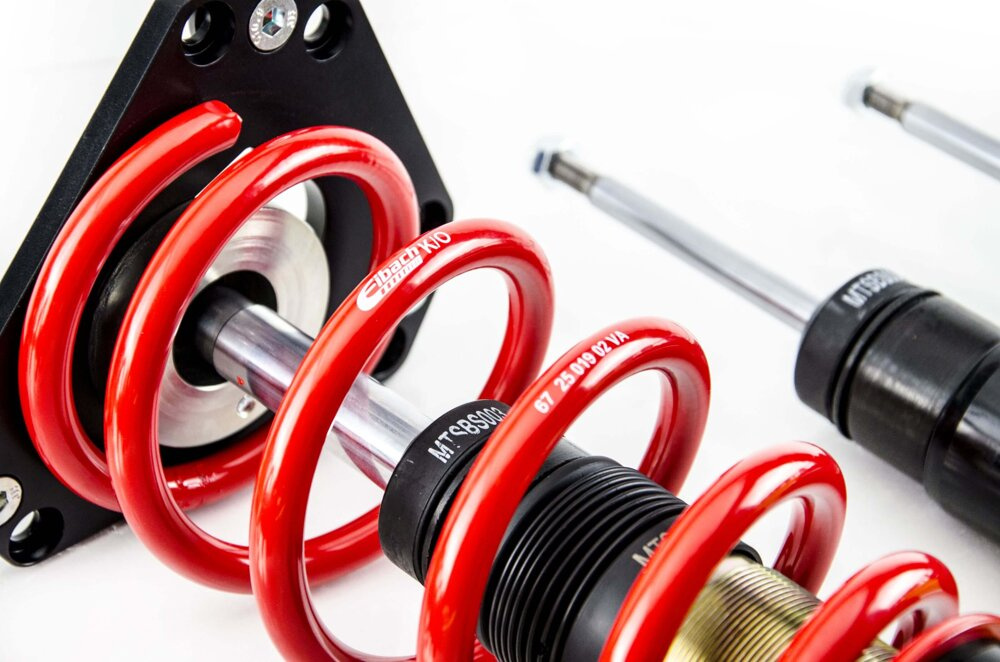

Coilover Kit Mercedes-Benz CLA Shooting Brake (X117)

Coilover Kit MTS Technik for Mercedes-Benz CLA Shooting Brake (X117), lowering the front axle between 20 - 50 mm, and rear between 20 - 55 mm. Dedicated for the years of: 01/15 - 03/19, for the engine version: AMG CLA 45 4-matic (117.952) / CLA 45 AMG 4-matic (117.952).

Matches to

BrandModelEngineYear
