Coilover Kit Street Mazda 3 Saloon (BL)
Coilover Kit Street Mazda 3 Saloon (BL)
Coilover Kit Street Mazda 3 Saloon (BL)
Coilover Kit Street Mazda 3 Saloon (BL)
Coilover Kit Street Mazda 3 Saloon (BL)
Coilover Kit Street Mazda 3 Saloon (BL)

Coilover Kit Street Mazda 3 Saloon (BL)

Part number: MTSGWMA05

Size
universal
699,00 €
incl. VAT / set
-
+
of
Large quantity.
Large quantity.
40 days returns
Direct from the producer
2 years warranty
Secure payments
Fast shipping

Car

MakeMazdaModel3 Saloon (BL)TypeBLEngine1.6 MZR (BL12) / 1.6 MZR CD (BL12) / 1.6 MZR CD (BL14) / 2.0 (BLFFP) / 2.0 MZR (BL12) / 2.0 MZR DISI (BL12) / 2.2 MZR CD (BL10)Year12/08 - 09/14

Tech specs

SeriesStreetHousinggoldMax. Axle Load FA

rating plate

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

1001 - 1135 kgMax. Axle Load RA

rating plate

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

-945 kgLowering FA30 - 60 mmLowering RA40 - 75 mmCamber / top mount FAnoCamber / top mount RAnoCoilover Main Spring (Front)Spring rate (70 N/mm)Coilover Helper Spring (Front)Spring rate (20 N/mm)Coilover Main Spring (Rear)Spring rate (30 - 84 N/mm)TUV CertificatenoDownload GPSR brochureDownload GPSR brochureDownload GPSR stickerDownload GPSR stickerDownload information brochureDownload information brochureDownload installation manualDownload installation manual

Product notes

3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.73 - For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.

Product description

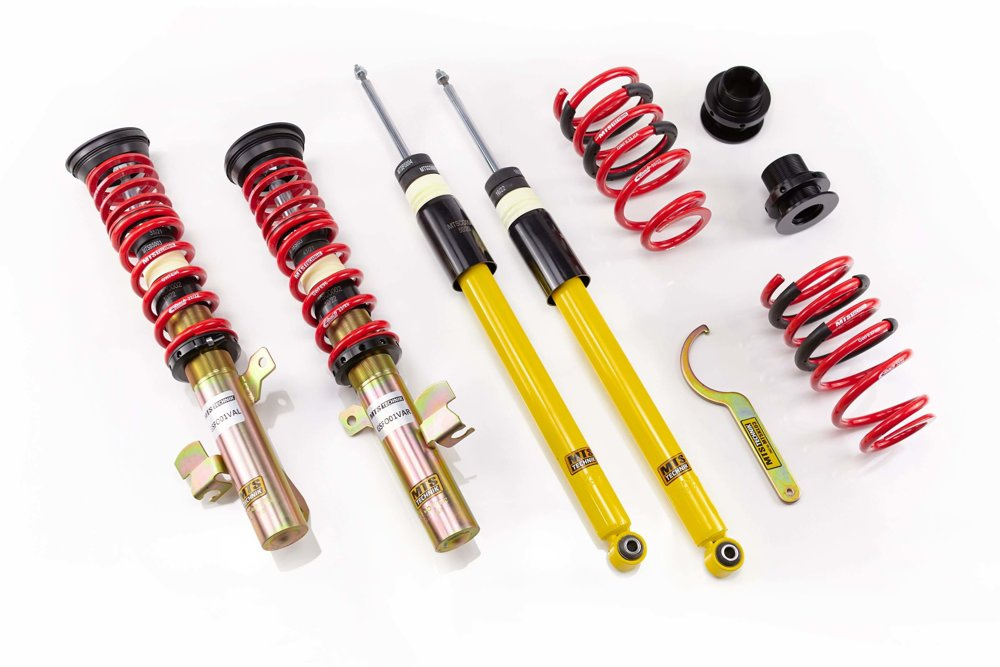

Coilover Kit Mazda 3 Saloon (BL)

Coilover Kit MTS Technik for Mazda 3 Saloon (BL), lowering the front axle between 30 - 60 mm, and rear between 40 - 75 mm. Dedicated for the years of: 12/08 - 09/14, for the engine version: 1.6 MZR (BL12) / 1.6 MZR CD (BL12) / 1.6 MZR CD (BL14) / 2.0 (BLFFP) / 2.0 MZR (BL12) / 2.0 MZR DISI (BL12) / 2.2 MZR CD (BL10).

2 years warranty 2 year warranty with no mileage limit to confirm high quality.
High quality Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
Twin-tube construction The use of twin-tube technology guarantees stable shock absorber performance.
Gas technology Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.

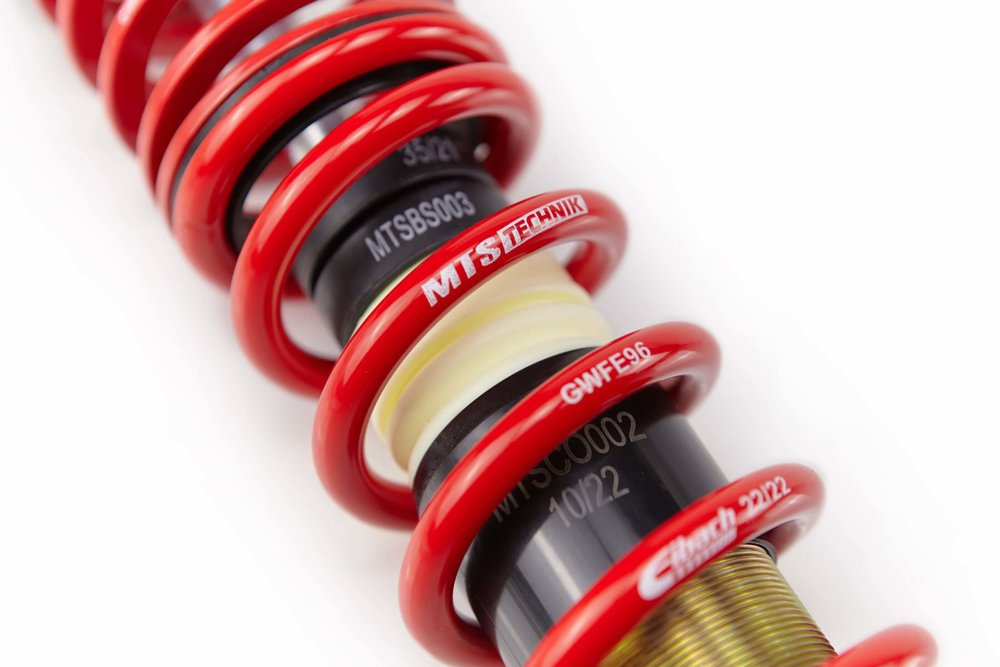

hexaCOIL adjustable spring perch Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Anti-corrosion protection yellow galvanized Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.

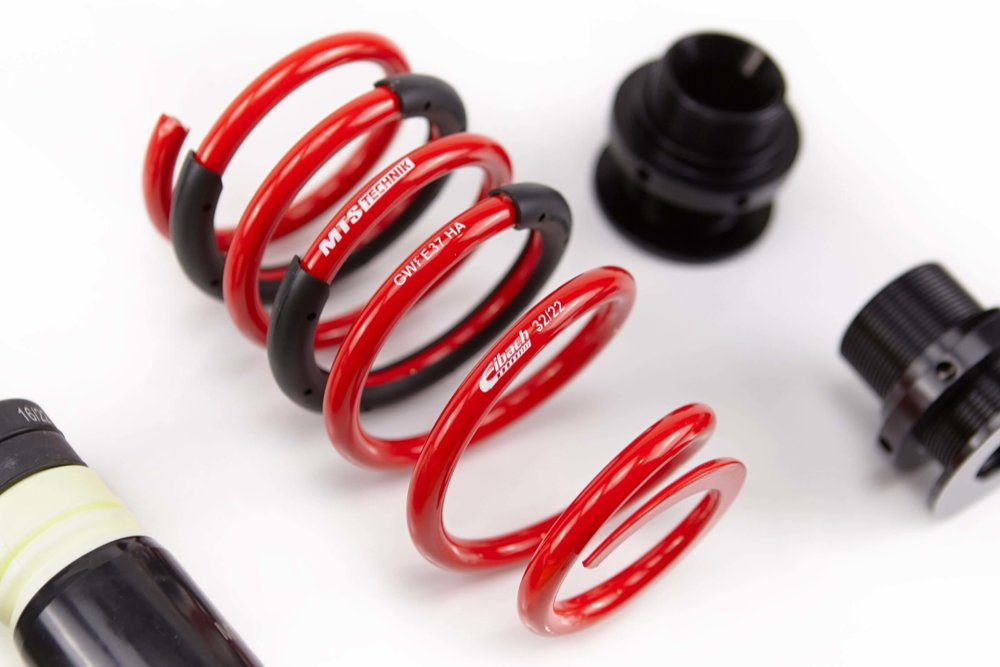

Eibach springs Coilover springs made by Eibach, the world leader in the sport springs industry.

Matches to

BrandModelEngineYear
