Coilover Kit Street BMW 6 (E24)
Coilover Kit Street BMW 6 (E24)
Coilover Kit Street BMW 6 (E24)
Coilover Kit Street BMW 6 (E24)
Coilover Kit Street BMW 6 (E24)
Coilover Kit Street BMW 6 (E24)
Coilover Kit Street BMW 6 (E24)
Coilover Kit Street BMW 6 (E24)
Coilover Kit Street BMW 6 (E24)
Coilover Kit Street BMW 6 (E24)

Coilover Kit Street BMW 6 (E24)

Part number: MTSGWBM32

Size
universal
949,00 €Lowest price in 30 days before discount(Discount 10% when buying in a set)
854,10 €
incl. VAT / set
-
+
of
Product on order
Product on order
40 days returns
Direct from the producer
2 years warranty
Secure payments
Fast shipping

Car

MakeBMWModel6 (E24)TypeE24Engine628 CSi / 633 CSi / 635 CSi / M 635 CSiYear05/82 – 04/89

Tech specs

SeriesStreetHousinggoldMax. Axle Load FA

rating plate

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

-980 kgMax. Axle Load RA

rating plate

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

-1000 kgLowering FA25 - 110 mmLowering RA25 - 90 mmCamber / top mount FAyesCamber / top mount RAnoCoilover Main Spring (Front)Spring rate (70 N/mm)Coilover Helper Spring (Front)Spring rate (20 N/mm)Coilover Main Spring (Rear)Spring rate (60 N/mm)Coilover Helper Spring (Rear)Spring rate (20 N/mm)Infostrut diameter at the front axle of 52 mmTUV CertificatenoDownload information brochureDownload information brochureDownload installation manualDownload installation manual

Product notes

2 - Front and rear axle height adjustable (threaded shock absorber housing).21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.26 - Independent height adjustment at the lower brackets on the front dampers.28 - Set includes 2x upper "camber plates" on the front axle.29 - The installation requires the use of OE front struts - they should be cut and welded as described in the attached manual.32 - In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set.33 - Including M-Technik.65 -

Suspension compatible only with a rear top mount with an internal diameter of 78mm - OEM number: 33521117657 or 33521126987. It is possible to mount the suspension to cars equipped with other top mounts, but original parts marked with one of the above numbers will be required.

66 - In the case of cars equipped with Nivo, it will be required to replace the rear top mounts with OEM: 33521117657 or 33521126987.

Product description

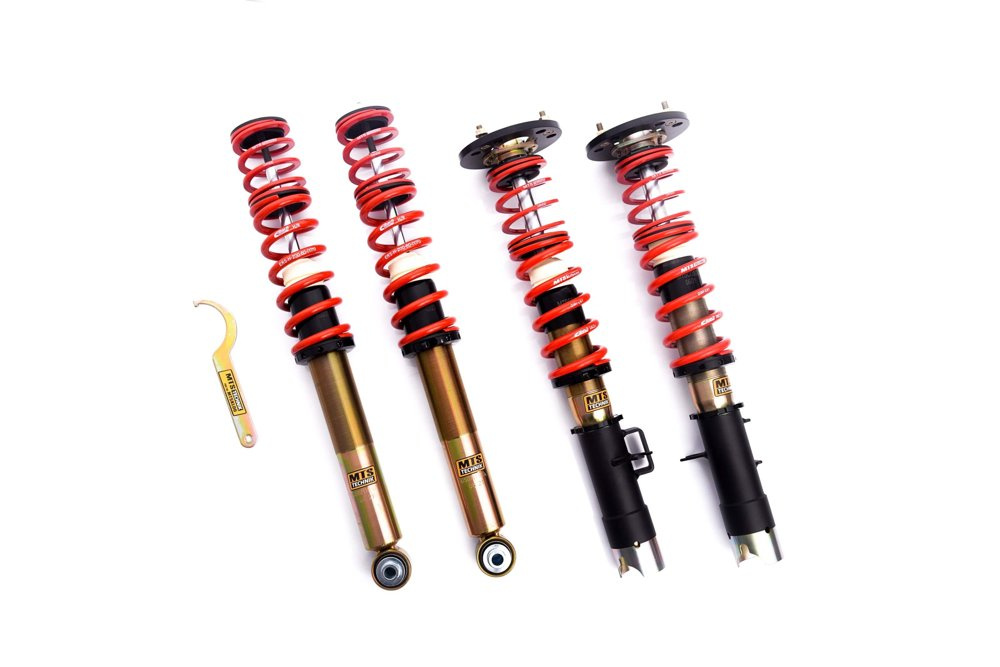

Coilover Kit BMW 6 (E24)

Coilover Kit MTS Technik for BMW 6 (E24), lowering the front axle between 25 - 110 mm, and rear between 25 - 90 mm. Dedicated for the years of: 10/75 - 04/89, for the engine version: 628 CSi / 633 CSi / 635 CSi / M 635 CSi.

2 years warranty 2 year warranty with no mileage limit to confirm high quality.
High quality Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
Twin-tube construction The use of twin-tube technology guarantees stable shock absorber performance.
Gas technology Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.

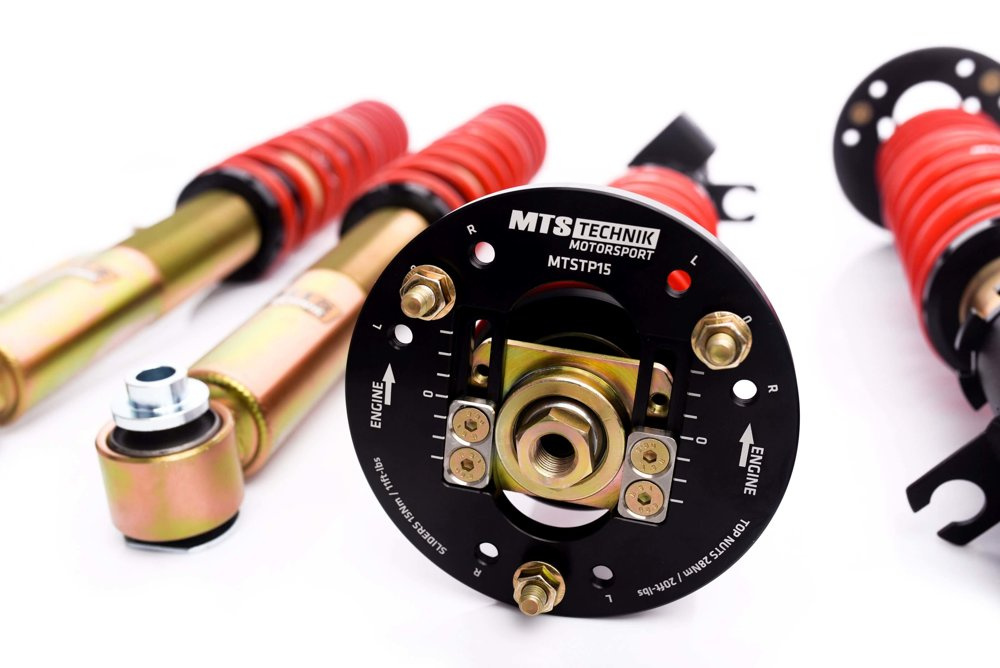

Top mounts with camber adjustment The camber plates allow the wheel angle adjustment and increase the precision of driving.
hexaCOIL adjustable spring perch Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Independent height adjustment at the bottom mounting Additional height adjustment at the bottom mounting, allowing the car's height reduction to be changed, without interfering with the spring operation characteristics.
Anti-corrosion protection yellow galvanized Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.

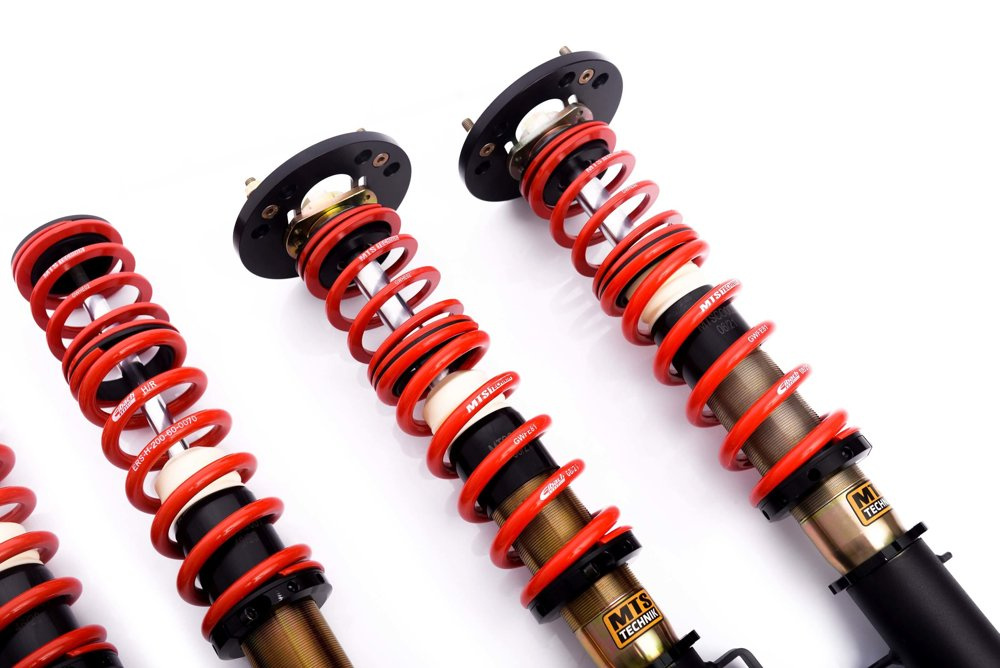

Eibach springs Coilover springs made by Eibach, the world leader in the sport springs industry.

Matches to

BrandModelEngineYear
