Coilover Kit Street BMW 3 (E30)
Coilover Kit Street BMW 3 (E30)
Coilover Kit Street BMW 3 (E30)
Coilover Kit Street BMW 3 (E30)
Coilover Kit Street BMW 3 (E30)
+3more
Coilover Kit Street BMW 3 (E30)
Coilover Kit Street BMW 3 (E30)
Coilover Kit Street BMW 3 (E30)
Coilover Kit Street BMW 3 (E30)
Coilover Kit Street BMW 3 (E30)
Coilover Kit Street BMW 3 (E30)
Coilover Kit Street BMW 3 (E30)

Coilover Kit Street BMW 3 (E30)

Part number: XMTSGWBM105

Size
universal
1 059,00 €Lowest price in 30 days before discount(Discount 10% when buying in a set)
953,10 €
incl. VAT / set
-
+
of
Large quantity.
Large quantity.
40 days returns
Direct from the producer
2 years warranty
Secure payments
Fast shipping

Car

MakeBMWModel3 (E30)TypeE30Engine315 / 316 / 316 i / 318 i / 318 is / 320 i / 323 i / 324 d / 324 td / 325 e 2.7 / 325 iYear09/82 - 12/91

Tech specs

SeriesStreetHousinginoxMax. Axle Load FA

rating plate

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

-865 kgMax. Axle Load RA

rating plate

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

-1030 kgLowering FA25 - 90 mmLowering RA25 - 60 mmCamber / top mount FAyesCamber / top mount RAyesCoilover Main Spring (Front)Spring rate (60 N/mm)Coilover Helper Spring (Front)Spring rate (20 N/mm)Coilover Main Spring (Rear)Spring rate (46 - 90,1 N/mm)Infostrut diameter at the front axle of 45 mmTUV CertificatenoDownload information brochureDownload information brochureDownload installation manualDownload installation manual

Product notes

3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).8 - Not for 4x4.21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.26 - Independent height adjustment at the lower brackets on the front dampers.28 - Set includes 2x upper "camber plates" on the front axle.29 - The installation requires the use of OE front struts - they should be cut and welded as described in the attached manual.33 - Including M-Technik.35 - Rear thread adjustment block is mounted on the top.73 - For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.

Product description

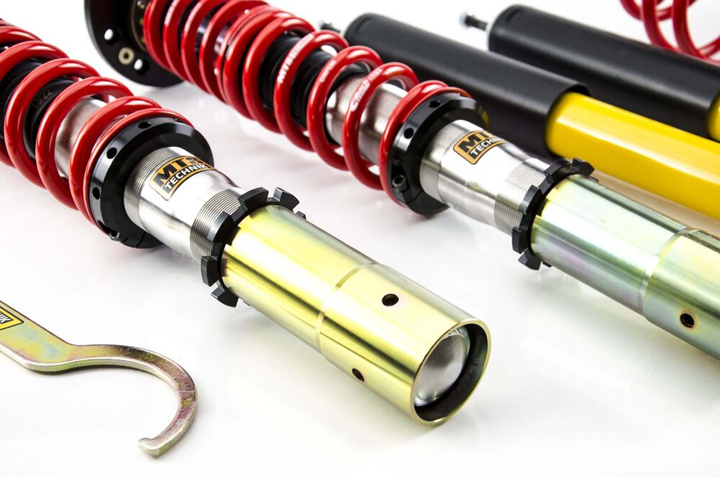

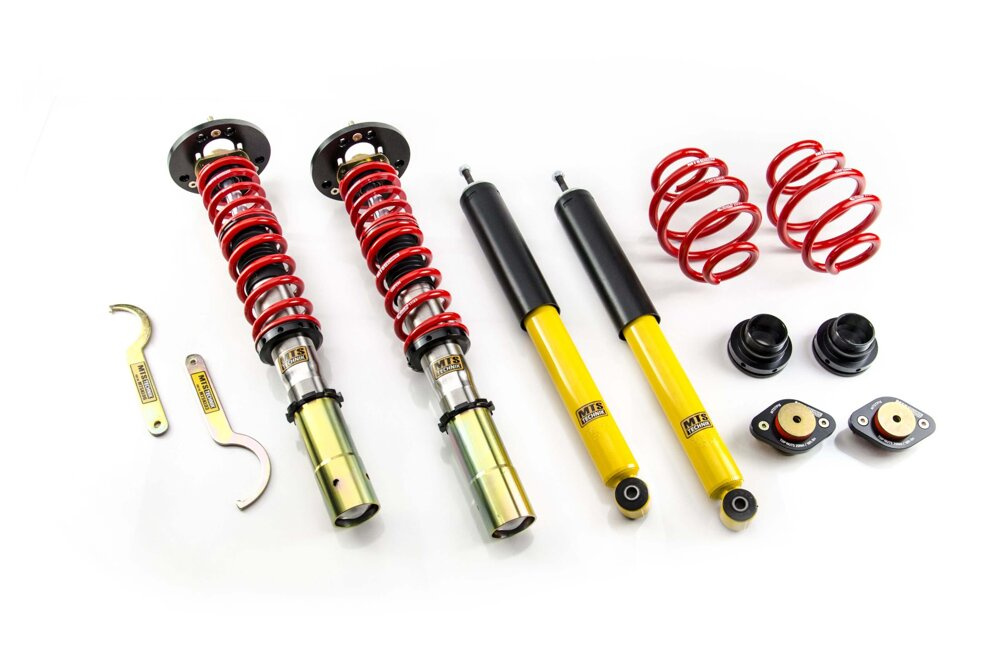

Coilover Kit BMW 3 (E30)

Coilover Kit MTS Technik for BMW 3 (E30), lowering the front axle between 25 - 90 mm, and rear between 25 - 60 mm. Dedicated for the years of: 09/82 - 12/91, for the engine version: 315 / 316 / 316 i / 318 i / 318 is / 320 i / 323 i / 324 d / 324 td / 325 e 2.7 / 325 i.

2 years warranty 2 year warranty with no mileage limit to confirm high quality.
High quality Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
Twin-tube construction The use of twin-tube technology guarantees stable shock absorber performance.
Gas technology Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.

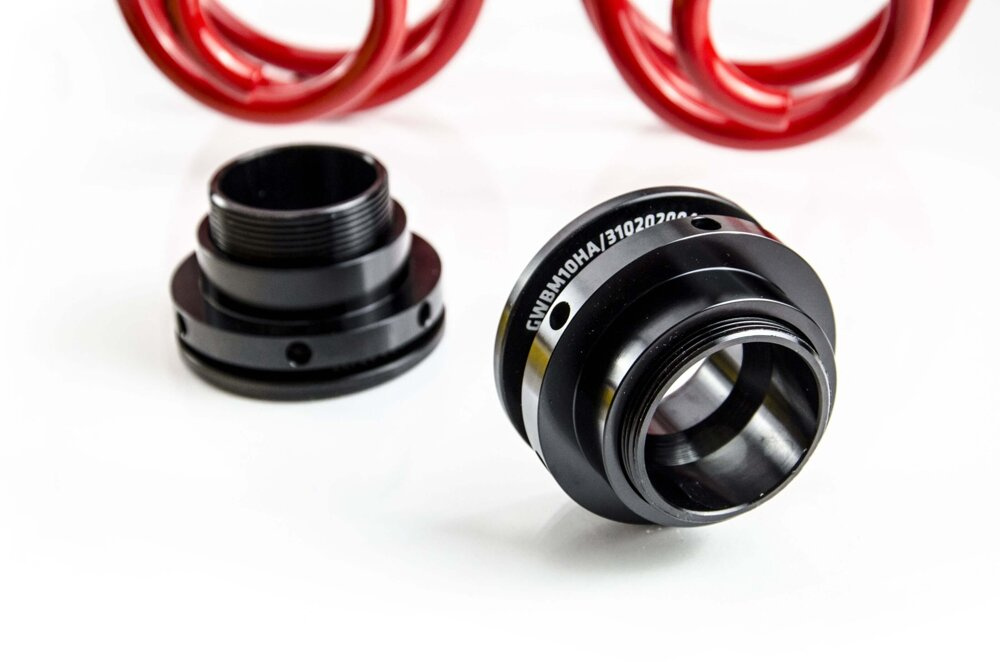

Specially selected type of thread Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.

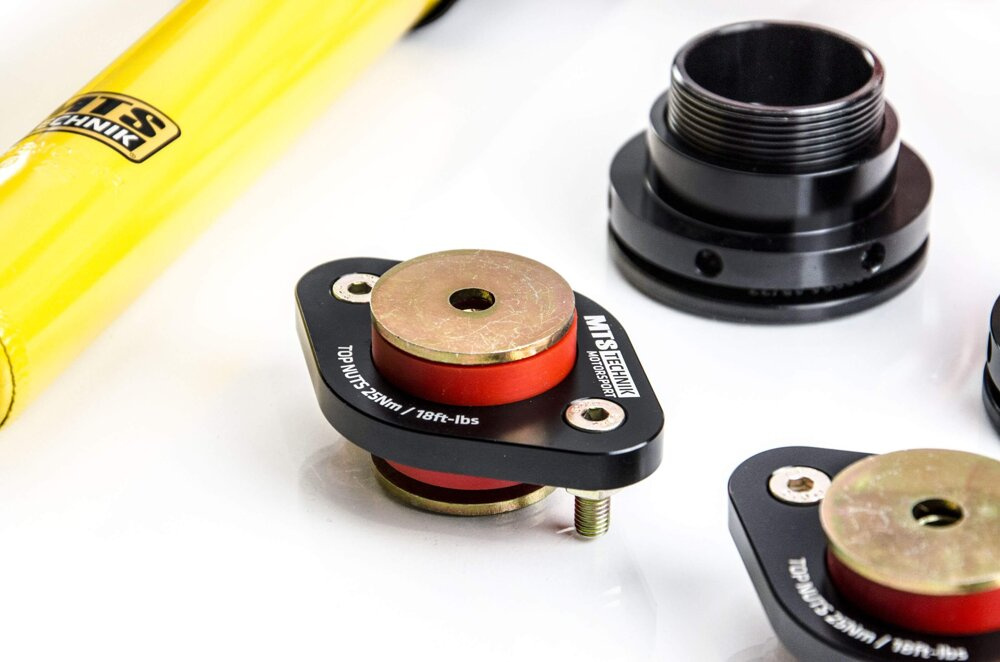

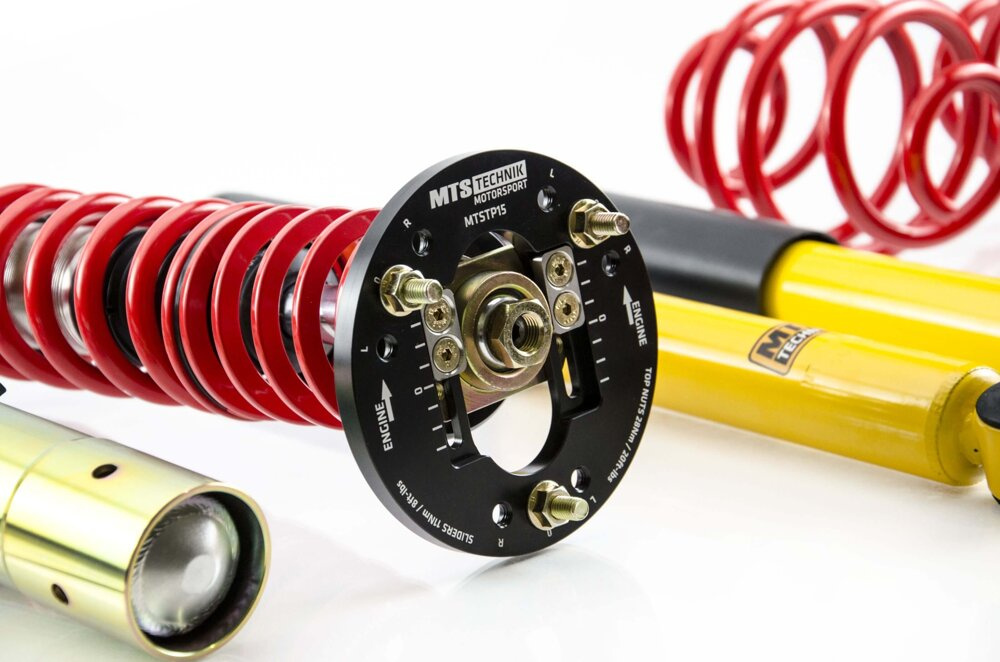

Top mounts with camber adjustment The camber plates allow the wheel angle adjustment and increase the precision of driving.
hexaCOIL adjustable spring perch Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Independent height adjustment at the bottom mounting Additional height adjustment at the bottom mounting, allowing the car's height reduction to be changed, without interfering with the spring operation characteristics.

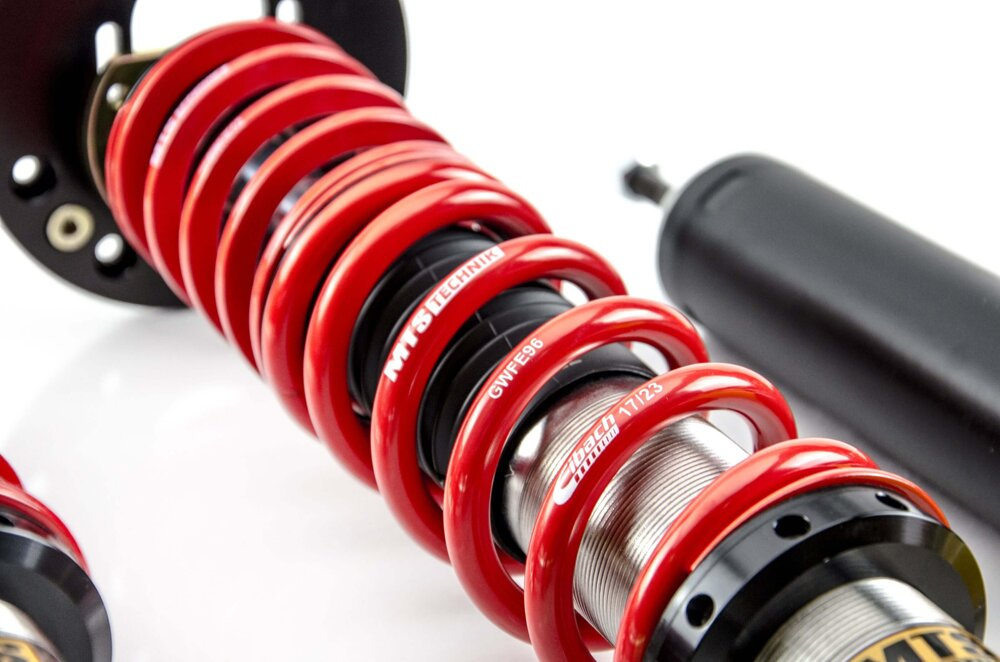

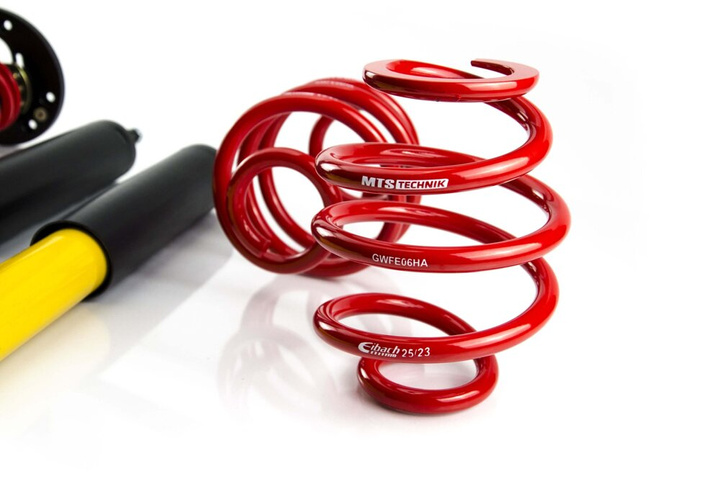

Eibach springs Coilover springs made by Eibach, the world leader in the sport springs industry.
Stainless steel threaded shock absorbers. Stainless steel threaded shock absorbers.
