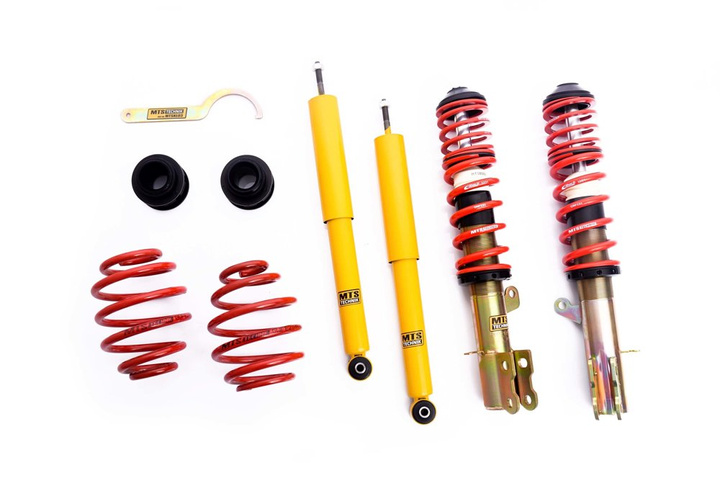

Coilover Kit Stance Opel CORSA C (X01)
MakeOpelModelCORSA C (X01)TypeX01Engine1.0 (F08, F68) / 1.2 (F08, F68) / 1.2 Twinport (F08, F68) / 1.3 CDTI (F08, F68) / 1.4 (F08, F68) / 1.4 Twinport (F08, F68) / 1.7 CDTI (F08, F68) / 1.7 DI (F08, F68) / 1.7 DTI (F08, F68) / 1.8 (F08, F68)Year09/00 - 12/09
SeriesStanceHousinggoldMax. Axle Load FA![](/data/include/cms/cms_graphics/qmark2.gif)
![rating plate](/data/include/cms/cms_graphics/karta-towaru/towary/tabliczka.jpg)
Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.
-880 kgMax. Axle Load RA![](/data/include/cms/cms_graphics/qmark2.gif)
![rating plate](/data/include/cms/cms_graphics/karta-towaru/towary/tabliczka.jpg)
Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.
-760 kgLowering FA15 - 70 mmLowering RA15 - 70 mmCamber / top mount FAnoCamber / top mount RAnoCoilover Main Spring (Front)Spring rate (70 N/mm)Coilover Helper Spring (Front)Spring rate (20 N/mm)Coilover Main Spring (Rear)Spring rate (27,3 - 52 N/mm)TUV CertificateyesDownload information brochureDownload information brochureDownload installation manualDownload installation manualDownload TUV CertificateDownload TUV Certificate 3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.35 - Rear thread adjustment block is mounted on the top.43 - For vehicles with M10 bottom fixing of the rear shock absorber.73 - For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
Coilover Kit Opel CORSA C (X01)

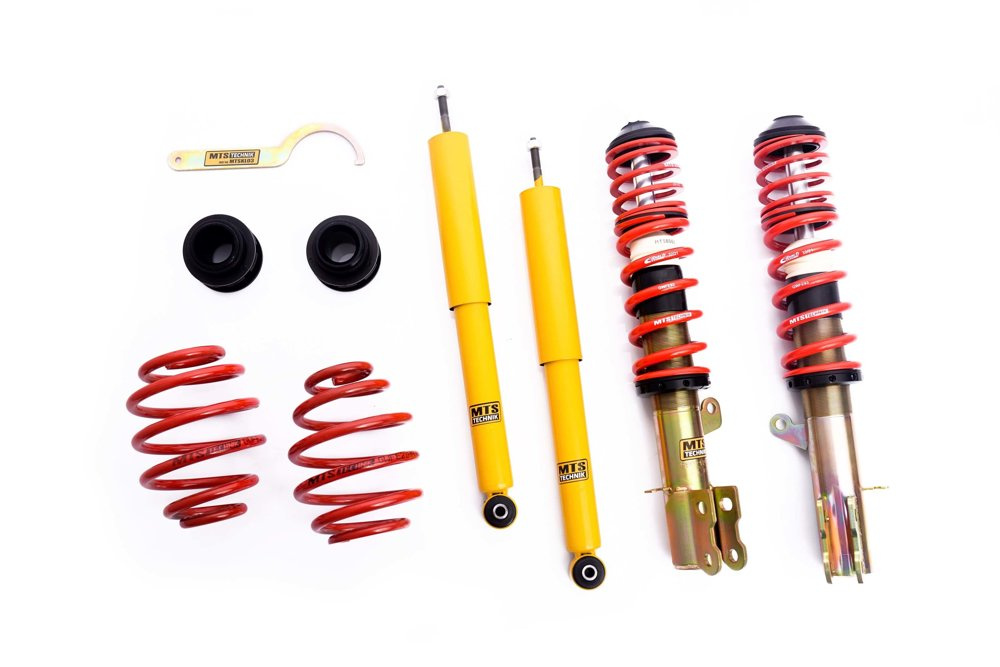

Coilover Kit MTS Technik for Opel CORSA C (X01), lowering both axles between 15 - 70 mm. Dedicated for the years of: 09/00 - 12/09, for the engine version: 1.0 (F08, F68) / 1.2 (F08, F68) / 1.2 Twinport (F08, F68) / 1.3 CDTI (F08, F68) / 1.4 (F08, F68) / 1.4 Twinport (F08, F68) / 1.7 CDTI (F08, F68) / 1.7 DI (F08, F68) / 1.7 DTI (F08, F68) / 1.8 (F08, F68).
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.

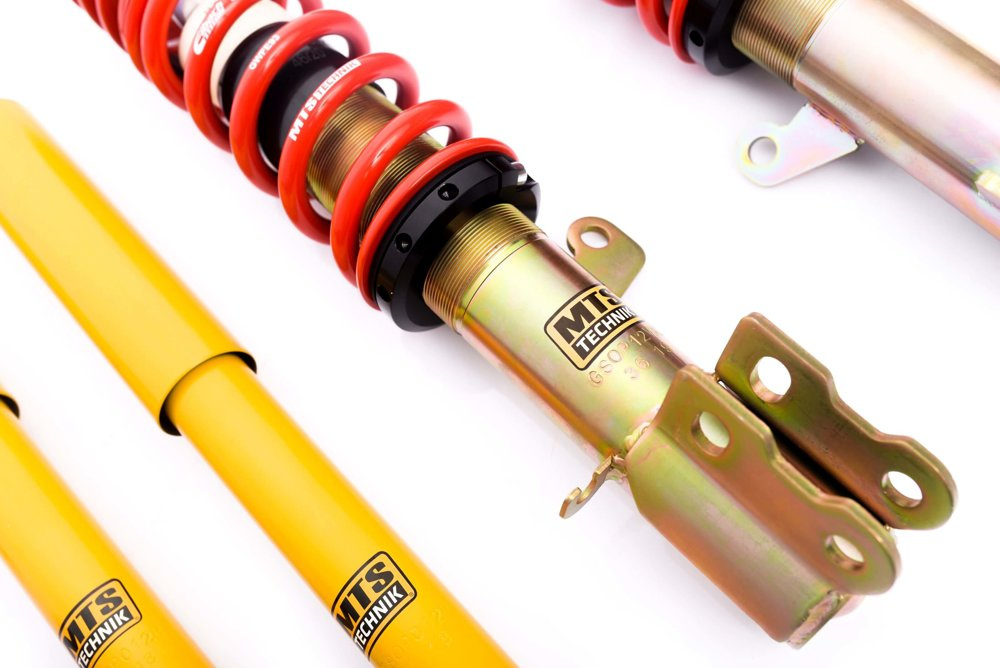

Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Coilover springs made by Eibach, the world leader in the sport springs industry.
