Adjustable camber / caster plates (front) Seat ALTEA XL (5P)
Part number:
MTSCP20SET
Car
MakeSeatModelALTEA XL (5P)Type5P5, 5P8Engine1.9 TDI 4x4 / 2.0 TDI 16V 4x4 / 2.0 TDI 4x4 / 2.0 TFSI 4x4Year10/06 -
Tech specs
AxlefrontVersionAdjustable camber / caster plateAdjustment range-2.5° to +0.5°Additional lowering-Weight800 gFitting for OEM suspensionyesTUV CertificatenoDownload GPSR brochureDownload GPSR brochureDownload GPSR stickerDownload GPSR sticker
Product notes
59 - If the kit does not include a special piston rod nut, use a nut from the shock absorber.63 - The adjustment range may be different depending on the vehicle version, the lowering or the accuracy of welding of the suspension components.
Product description

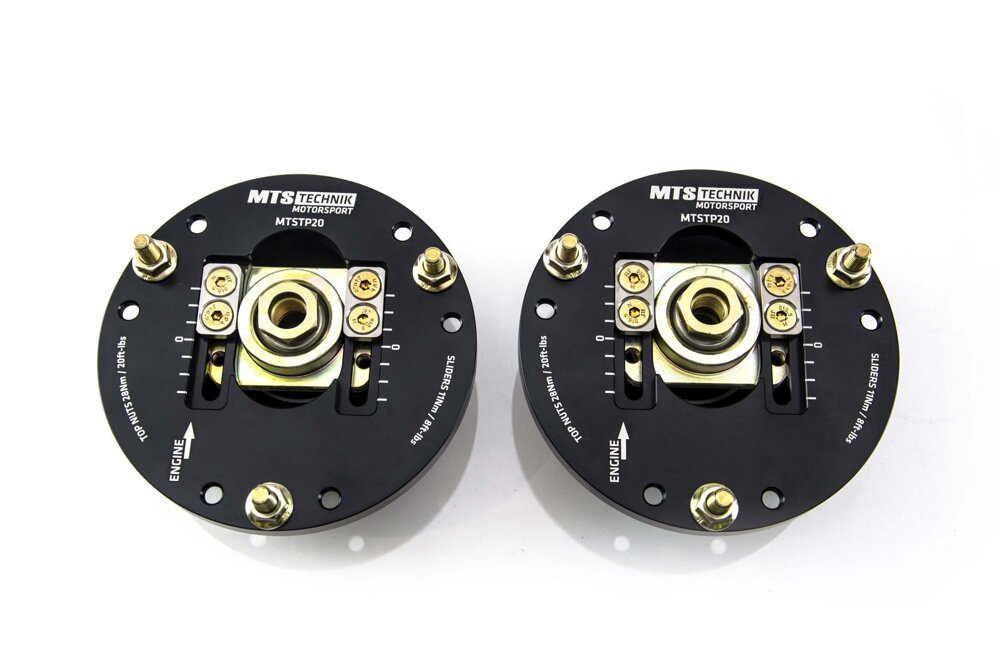

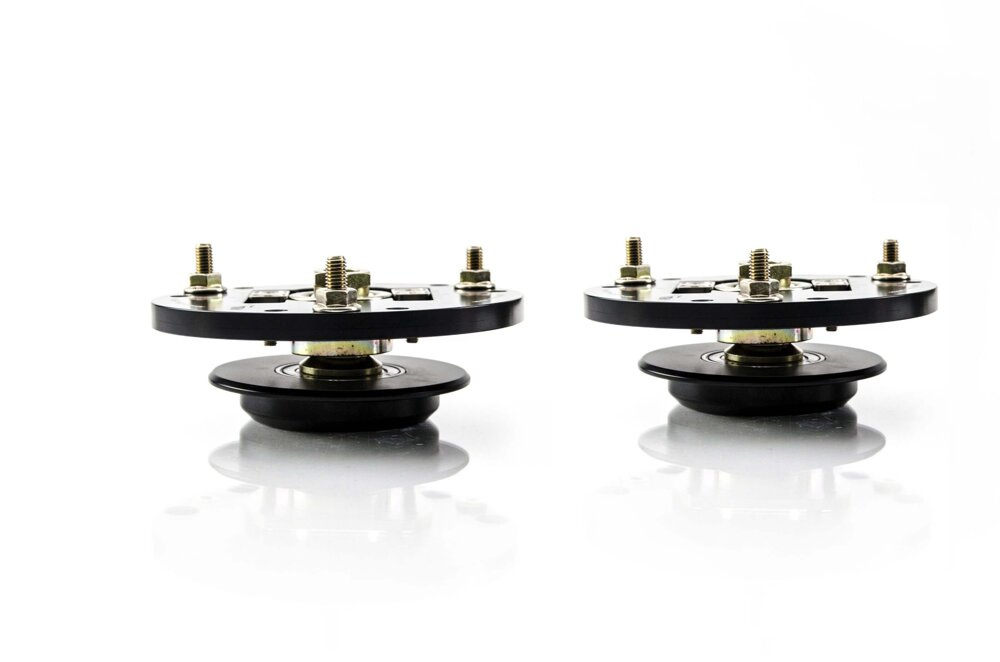

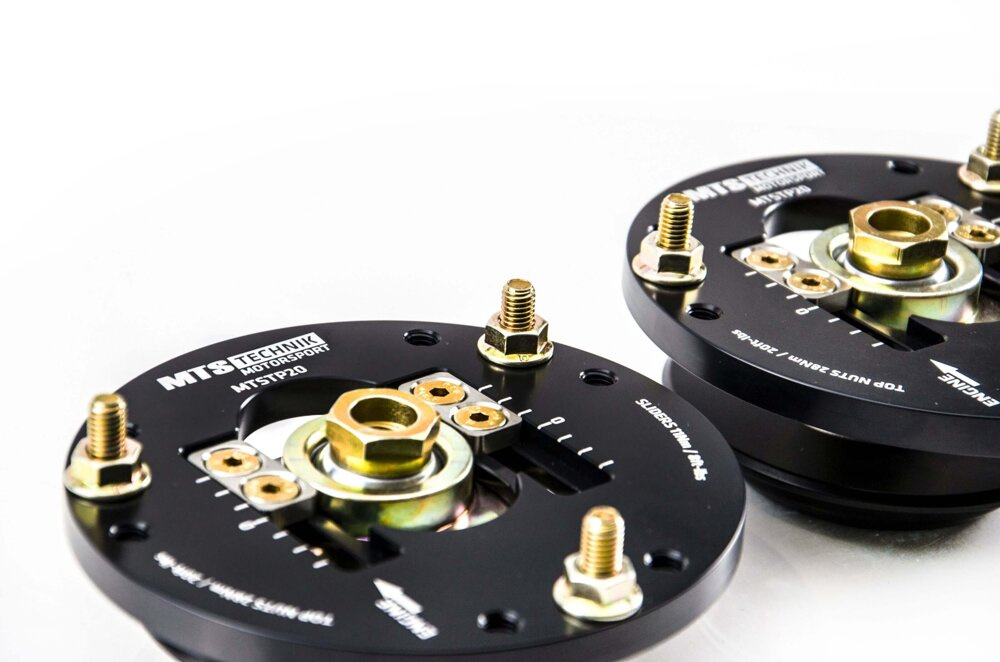

Adjustable camber / caster plates (front) Seat ALTEA XL (5P)
Adjustable camber / caster plates (front) MTS Technik for Seat ALTEA XL (5P) allows you to adjust the angle of inclination of the wheels relative to the ground and the lead angle of the kingpin.
Evolution 2 - the latest generation of MTS Technik top mounts.
When designing the new, improved upper mounts, we were inspired by the slogan 'Daily stance - basic motorsport'. We wanted the product to have sports features (increased stiffness, new uniball bearing, angle adjustment) while minimizing the nuisance in everyday use and high aesthetics required by showcar event cars (aesthetic black-gold).
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The camber plates allow the wheel angle adjustment and increase the precision of driving.
Compatibility
Compatible with the following MTS Technik coilover suspensions:
MTSGWVW30 MTSGWVW30-S MTSGWVW31 MTSGWVW31-S MTSGWVW45
If you want to use Adjustable camber / caster plates (front) in a coilover suspension of another brand, check the dimensions below:
A - Piston rod diameter: 22 mm
B - Piston rod thread pitch: M14x1.5
C - Length of the groove: 30 mm
D - Piston rod thread length: 30 mm
