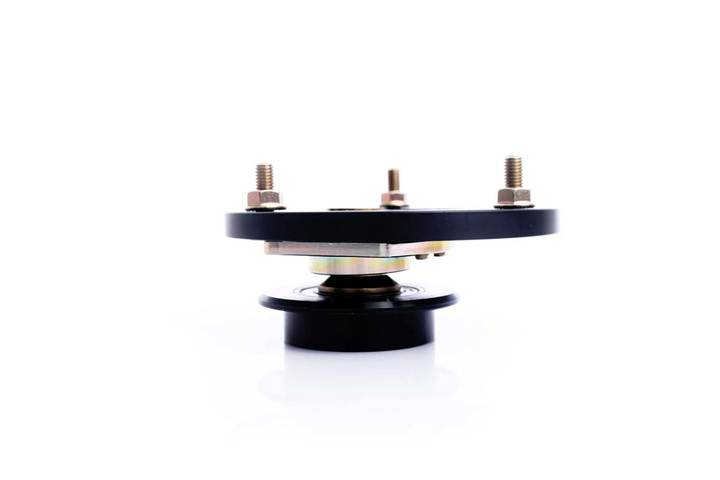

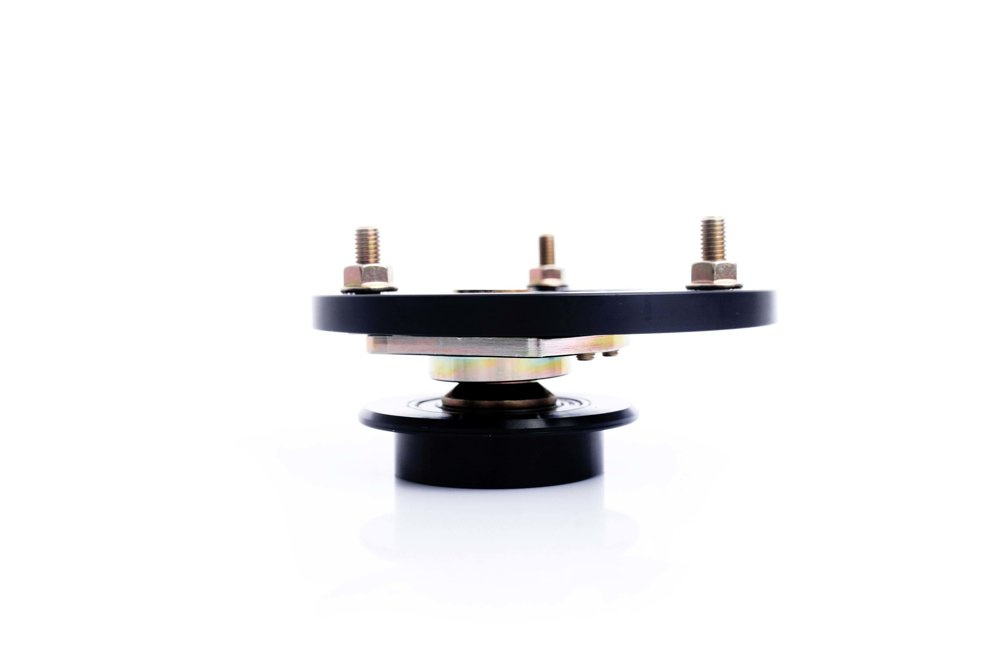

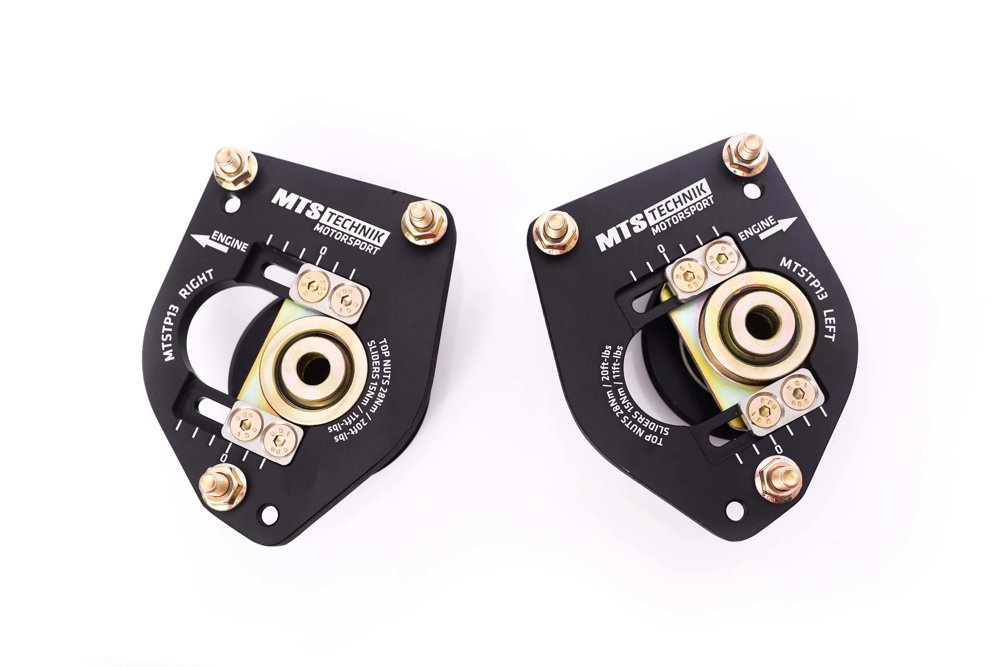

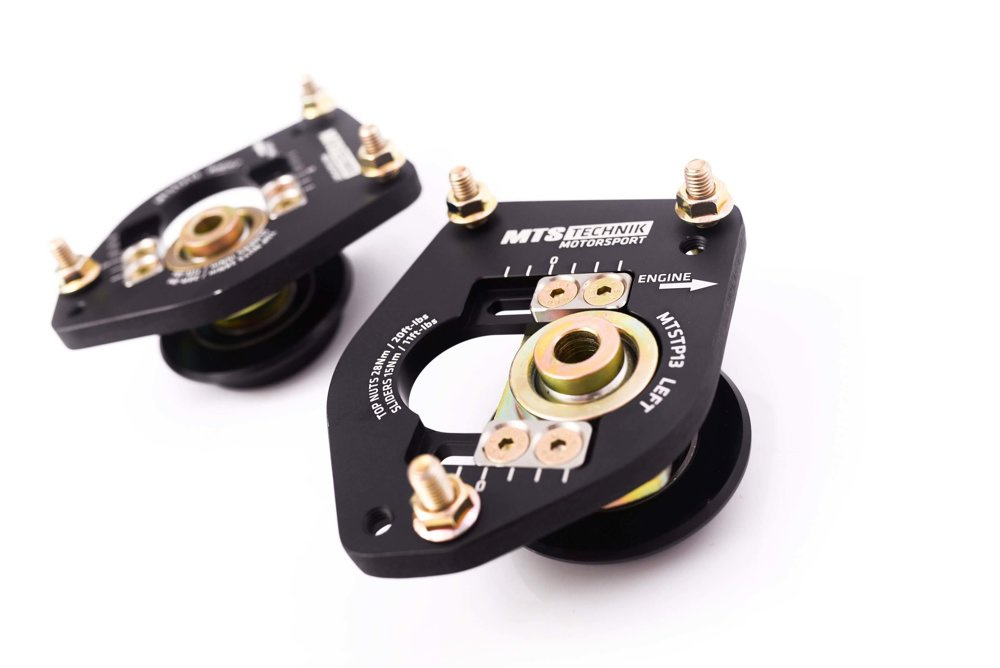

Adjustable camber / caster plates (front) Fiat CINQUECENTO (170)
Part number:
MTSCP13SET
Car
MakeFiatModelCINQUECENTO (170)Type170_Engine0.9 (170AB) / 0.9 i.e. (170AC) / 0.9 i.e. S (170AF, 170CF) / 1.1 Sporting (170AH)Year07/91 - 07/99
Tech specs
AxlefrontVersionAdjustable camber / caster plateAdjustment range-2.0° to +0.5°Additional lowering10 mm height increaseWeight760 gFitting for OEM suspensionnoTUV CertificatenoDownload GPSR brochureDownload GPSR brochureDownload GPSR stickerDownload GPSR stickerDownload installation manualDownload installation manual
Product notes
59 - If the kit does not include a special piston rod nut, use a nut from the shock absorber.63 - The adjustment range may be different depending on the vehicle version, the lowering or the accuracy of welding of the suspension components.
Product description
Adjustable camber / caster plates (front) Fiat CINQUECENTO (170)
Adjustable camber / caster plates (front) MTS Technik for Fiat CINQUECENTO (170) allows you to adjust the angle of inclination of the wheels relative to the ground and the lead angle of the kingpin.
Evolution 2 - the latest generation of MTS Technik top mounts.
When designing the new, improved upper mounts, we were inspired by the slogan 'Daily stance - basic motorsport'. We wanted the product to have sports features (increased stiffness, new uniball bearing, angle adjustment) while minimizing the nuisance in everyday use and high aesthetics required by showcar event cars (aesthetic black-gold).
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The camber plates allow the wheel angle adjustment and increase the precision of driving.
Compatibility
Compatible with the following MTS Technik coilover suspensions:
MTSGWFI08 MTSGWFI08-S
If you want to use Adjustable camber / caster plates (front) in a coilover suspension of another brand, check the dimensions below:
A - Piston rod diameter: 22 mm
B - Piston rod thread pitch: M12x1.25
C - Length of the groove: 55 mm
D - Piston rod thread length: 25 mm
